Limit Switch Lineup (12L, 12D Series)
Simple linear operation via built-in limit switches without drive circuit & potentiometer.
Limit Switch Lineup (12L, 12DX Series) Features
- Built-in limit switches, DC motor and gear box without drive circuit & potentiometer.
- Simple & easy linear operation (No servo data communication)
- Reasonable cost comparing to 12Lf and L12 servo actuators
-
12mm diameter 12V coreless motor lineup and cored motor lineup and 12V / 7.4V Cored motor lineup
* The coreless motor is superior to the cored motor in terms of force and durability. - 22mm stroke (Longer stroke options to be released later)
- Rated Load of 12N ~ 100N according to gear ratio for each stroke
- Stroke limit adjustable using external limit switch.
Buy Now !
Main Features (12L Series)
- 500μm Unidirectional repeatability
- Heavy Duty Reliable coreless DC motor
- Life-cycle Reference Data is on our website (Under 50% duty cycle recommended)
- Compact size for space constraints
- Various mounting solutions
- Detachable and 90° rotatable hinge design (Patented)
- Various Rated Load options (35 to 100N)
- Various Speed options (7.7 to 28mm/s at No load condition)
- 22mm Stroke (Longer stroke version to be released soon)
- Vertical (Z axis) use is possible thanks to mechanical Self-lock
Applications
- Medical device and Lab equipment
- Kiosk machines
- Robotics
- Automation (Factory / Home / Agriculture etc)
- Production and inspection jigs
- UAV (Fixed wing / Helicopter / Multicopter etc)
Main Features (12D Series)
- 500μm Unidirectional repeatability
- Cored DC motor applied
- Life-cycle Reference Data is on our website (Under 50% duty cycle recommended)
- Compact size for space constraints
- Various mounting solutions
- Detachable and 90° rotatable hinge design (Patented)
- Input voltage option (7.4V, 12V)
- Rated Load 12N
- Max speed (10mm/s at no load)
- 22mm Stroke
- Vertical (Z axis) use is possible thanks to mechanical Self-lock
Applications
- Medical device and Lab equipment
- Kiosk machines
- Robotics
- Automation (Factory / Home / Agriculture etc)
- Production and inspection jigs
- UAV (Fixed wing / Helicopter / Multicopter etc)
- DYI, Education, Hobby, etc
Limit Switch Lineup (12L Series) Actuators Specifications
| Rated Load | Stroke | Input Volt. : 12V / Model# |
Rated Load / Max Speed (No Load) |
Mechanical Self-Lock (Z Axis Use) |
Gear Ratio / Gear Type | Motor Type / Watt |
|---|---|---|---|---|---|---|
| 35N | 22mm | 12L-35S-22 | 35N / 28mm/s | Yes (Applicable) |
10:1/ Engineering Plastic gears | Coreless Motor / 26W |
| 55N | 12L-55S-22 | 55N / 15mm/s | 20:1/ 4 Metal & 2 Engineering Plasticgears | |||
| 100N | 12L-100S-22 | 100N / 7.7mm/s | 50:1/ 4 Metal & 2 Engineering Plasticgears |
Limit Switch Lineup (12D Series) Actuators Specifications
| Rated Load | Stroke | Input Volt. : 7.4 or 12V / Model# | Rated Load / Max Speed (No Load) |
Mechanical Self-Lock (Z Axis Use) |
Gear Ratio / Gear Type | Motor Type / Watt |
|---|---|---|---|---|---|---|
| 12N | 22mm | 12D7-12S-22 (7.4V) | 12N / 10mm/s | Yes (Applicable) |
10:1 /Engineering Plastic Gears | Cored Motor / 4.2W |
| 12N | 12D-12S-22 (12V) | 12N / 10mm/s |
Limit Switch Lineup (12L Series) Common Specifications
| Stroke | 22mm | ||
|---|---|---|---|
| Repeatability (Unidirectional) | 500μm (0.5mm) | ||
| Mechanical Backlash | 0.03mm (30μm) | ||
| Rod Type | Metal Alloy Rod | ||
| Motor Type | Coreless Motor | ||
| Motor Watt | 26W | ||
| Recommended Duty Cycle | At Rated Load | At Max Applicable Load | |
| Max 50% | Max 20% | ||
| Input Voltage Range | 7 ~ 13V | ||
| Current Consumption | Idle | Rated | Max(Stall) |
| 50mA | 380mA | 1.5A | |
| Audible Noise | Approx. 50db at 1m | ||
| Ingress Protection | IP-54 (Dust & Water Tight) | ||
| Size / Weight (Excluding rod-end & hinge) | 57.4(L)x29.9(W)x15(H)mm / 48g | ||
| Operating Temperature | -10℃ ~ 60℃ | ||
| Wire Harness | 0.08x60 (AWG 22), 30cm | ||
Limit Switch Lineup (12D Series) Common Specifications
| Stroke | 22mm | |||
|---|---|---|---|---|
| Repeatability (Unidirectional) | 500μm(0.5mm) | |||
| Mechanical Backlash | 0.03mm(30μm) | |||
| Rod Type | EngineeringPlastic Rod | |||
| Motor Type | CoredMotor | |||
| Motor Watt | 26W | |||
| Recommended Duty Cycle | At Rated Load | At Max Applicable Load | ||
| Max 50% | Max 20% | |||
| Input Voltage Range | 7.4V | 12V | ||
| 5~8.9V | 7 ~13V | |||
| Current Consumption | Input Voltage | Idle | Rated | Max(Stall) |
| 7.4V | 50mA | 250mA | 360mA | |
| 12V | 50mA | 140mA | 250mA | |
| Audible Noise | Approx. 50db at 1m | |||
| Ingress Protection | IP-54(Dust & Water Tight) | |||
| Size / Weight (Excluding rod-end & hinge) | 57.4(L)x29.9(W)x15(H)mm/ 48g | |||
| Operating Temperature | -10℃~ 60℃ | |||
| Wire Harness | AWG22 | |||
Dimension

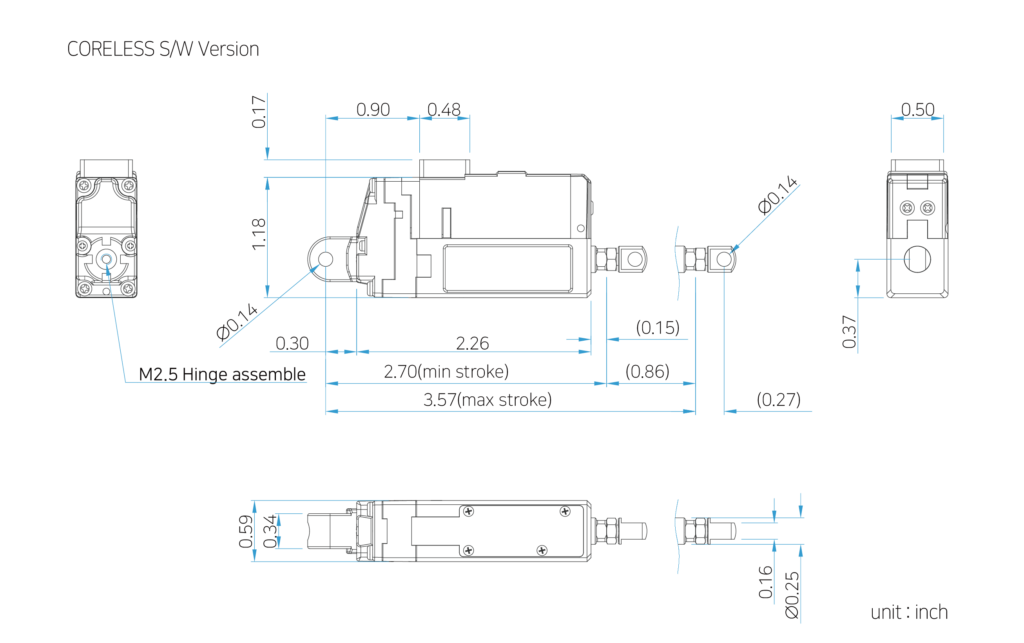

22mm Stroke (12L Series)

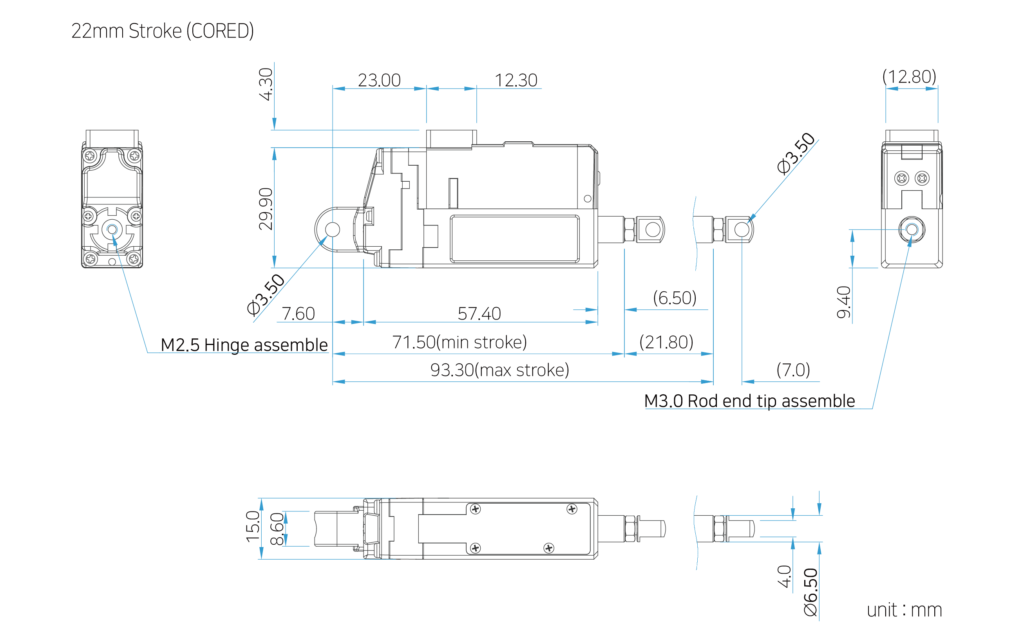

22mm Stroke (12D Series)

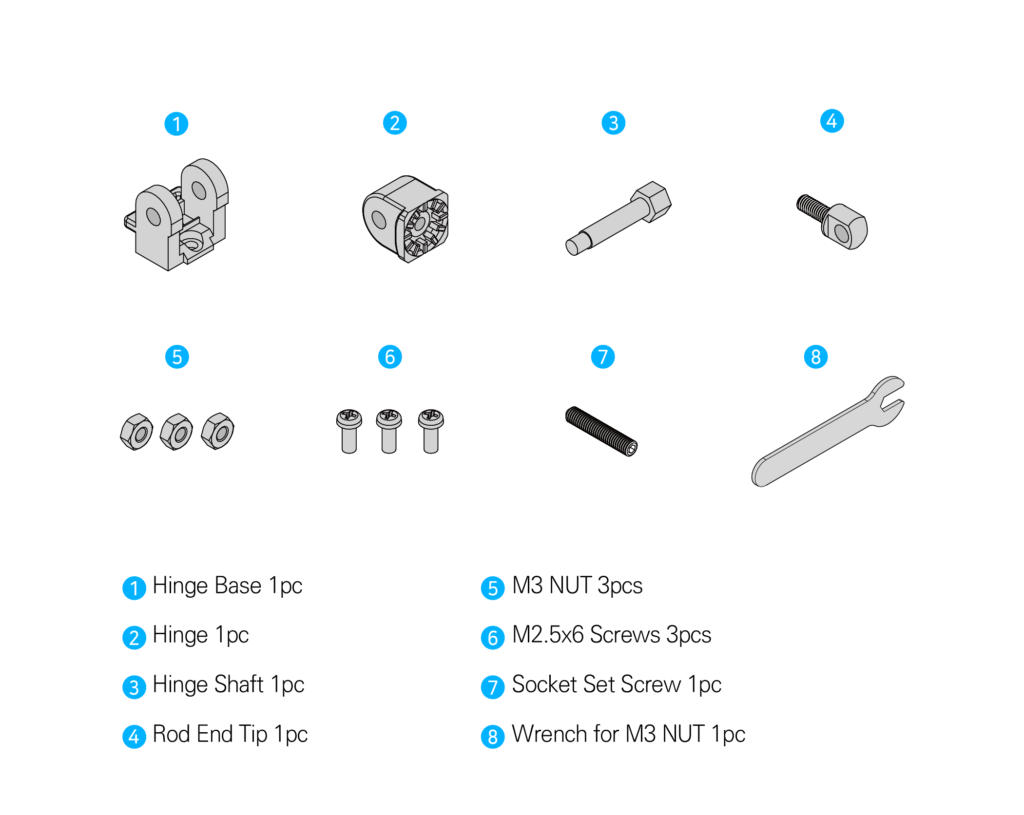

Standard Accessories (12L Series)

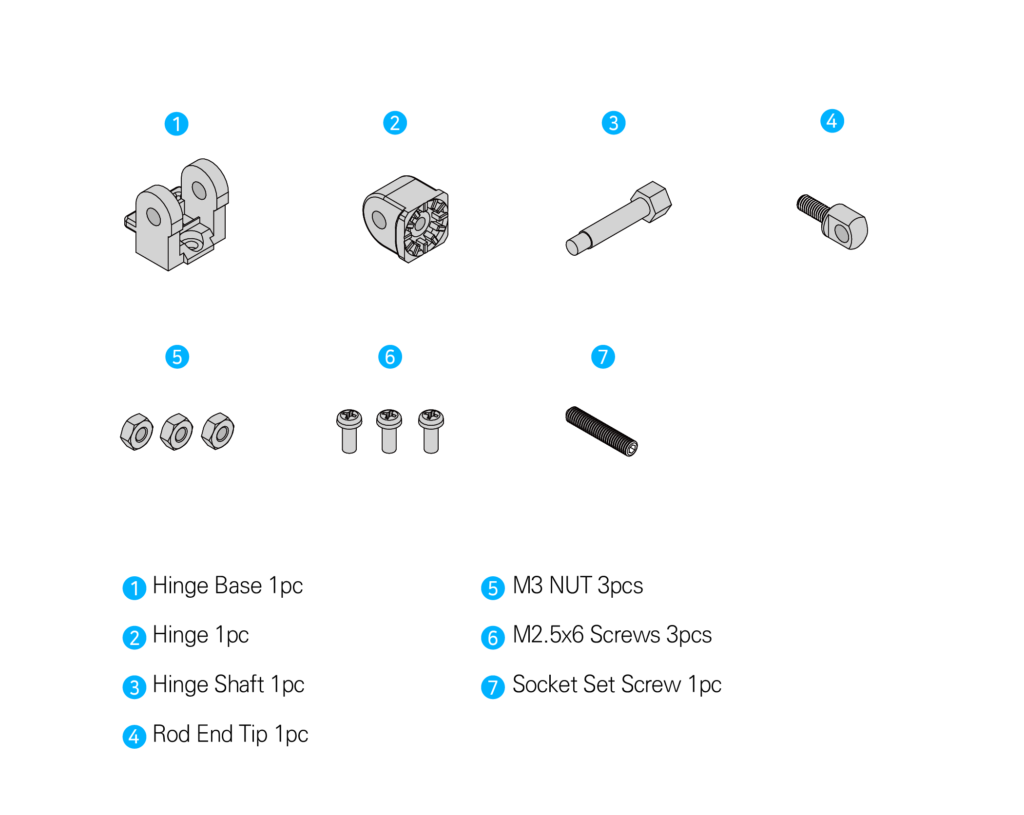

Standard Accessories (12D Series)
