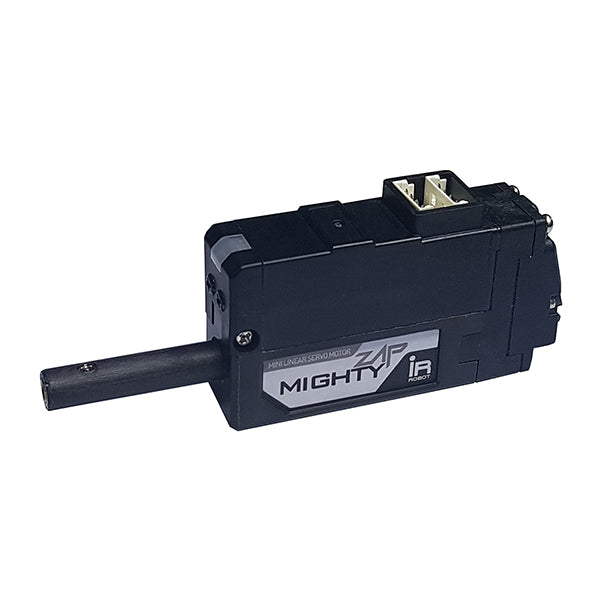

[ POSITION control lineup ] - 26mm(1.02in) stroke
[ POSITION control lineup ] - 26mm(1.02in) stroke
[ POSITION control lineup ] - 26mm(1.02in) stroke
[ POSITION control lineup ] - 26mm(1.02in) stroke
[ POSITION control lineup ] - 26mm(1.02in) stroke
[ POSITION control lineup ] - 26mm(1.02in) stroke
[ POSITION control lineup ] - 26mm(1.02in) stroke

[ POSITION control lineup ] - 26mm(1.02in) stroke

$88.00 $0.00

Position Control Lineup (L12, D12, D7 Series) Features

  • The most basic product group of mightyZAP with Position control feature
  • Built-in drive circuit, position sensor, DC motor and gear box
  • Reasonable price compared to the Force control 12Lf series
  • Suitable for customers who do not need current and speed control
  • Stall force and speed adjustment within a limited range by adjusting the motor operating rate
  • 12mm diameter coreless motor lineup and cored motor lineup
     * The coreless motor is superior to the cored motor in terms of force and durability.
  • 27/41/56/96mm stroke option (Based on coreless motor lineup)
  • Rated Load of 12N ~ 100N according to gear ratio for each stroke
    * Speed ​​is inversely proportional to Rated Load, so the stronger the Rated Load, the slower the speed.
  • Support RS-485 or TTL / PWM communication
    * TTL / PWM communication version operates by automatically recognizing the input TTL / PWM signal
    * When using PWM communication, only the position command is available without position feedback (For feedback feature, use TTL or RS-485 communication)
  • IR open protocol available

Important Technical Note

Important Technical Note

Position Control Lineup (D12, D7 Series) Specifications

Rated Load

 Stroke Input Volt : 12V Input Volt : 7.4V Rated Load /
Max Speed (No Load)		 Mechanical
Self Lock
(Z Axis Use)		 Lead Screw / Gear Ratio / Gear Type Motor Type / Wattt
RS-485 TTL/ PWM RS-485 TTL/ PWM
6N 26mm D12-6F-3 D12-6PT-3 D7-6F-3 D7-6PT-3 6N 36mm/s No
(Not Applicable)		 Lead Angle 15° / 10:1
/ Engineering
Plastic Gears

Cored Motor

/ 4.2W
12N D12-12F-3 D12-12PT-3 D7-12F-3 D7-12PT-3 12N / 12mm/s Yes
(Applicable)

Lead Angle 5°

/ 10:1
/ Engineering
Plastic Gears



Position Control Lineup (D12, D7 Series) Common Specifications



Repeatability

 Stroke Unidirectional
26mm 30μm (0.03mm)
Mechanical Backlash 0.03mm (30μm)
Gear Ratio 10:01
Gear Type Engineering Plastic Gears
Rod Type Engineering Plastic Rod
Motor Type Cored Motor
Motor Watt 4.2W
Recommended Duty Cycle At Rated Load At Max Applicable Load
Max 50% Max 20%
Position Sensor 10KΩ linear Potentiometer
Input Voltage Range 12V lineup : 7~13V (Rated : 12V) / 7.4V lineup : 6.5~8.9V(Rated 7.4V)
Current Consumption 7.4V Lineup 12V Lineup
Idle Rated Stall Idle Rated Stall
30mA 250mA 0.48A 30mA 140mA 0.3A
Audible Noise Approx. 50db at 1m
Data Communication / Protocol RS-485 or TTL(PT version) / IR Robot open   protocol
LED Indication Two Errors Indications (Input voltage, Overload)
Pulse Signal / Pulse Range PWM (PT version, R/C Hobby Signal) / 900μs(Retracted)-1500μs(Center)-2100μs (Extended)
Ingress Protection IP-54 (Dust & Water Tight)
Size / Weight
(Excluding rod-end & hinge)		 57.4(L)x29.9(W)x15(H)mm / 49~52g
Operating Temperature -10℃ ~ 60℃
Wire Harness TTL(PT version) : Molex to Molex Type
(Molex 50-37-5033, 3pins) / 200mm   length, 0.08×60(22AWG)
or RS485(F version) : Molex to   Molex Type (Molex 0510650400, 4pins) / 200mm length, 0.08×60(22AWG)

Dimension

Drawing

 *If you click the button above, the new window will open and move to the digital archive page of our headquarter's website.
Please make sure to return to the current website to complete the product purchase after referring to the data.

Standard Accessories



PC Software MightyZAP Manager

  • Setting for various operation parameters & memory parameters
    - Baud rate, ID, Delay, Stroke limit, Compliance margin setting
    - Goal Speed, Goal Position, Goal Current, LED Alarm, Shutdown setting
    - Acceleration / Deceleration Setting
  • Simple Motion Test
  • System reset and Firmware update
  • Motor Operating Rate, Voltage, Temperature, Position, Current real time monitoring
  • Need optional PC USB Interface “IR-USB02” (Sold separately)
  • Windows compatible mightyZAP manager PC software enables users to set various parameters & test motions. (Able to downloaded from our website for free)
  • (PC Software will be updated from time to time, so it is recommended for the user to download and update PC software properl
