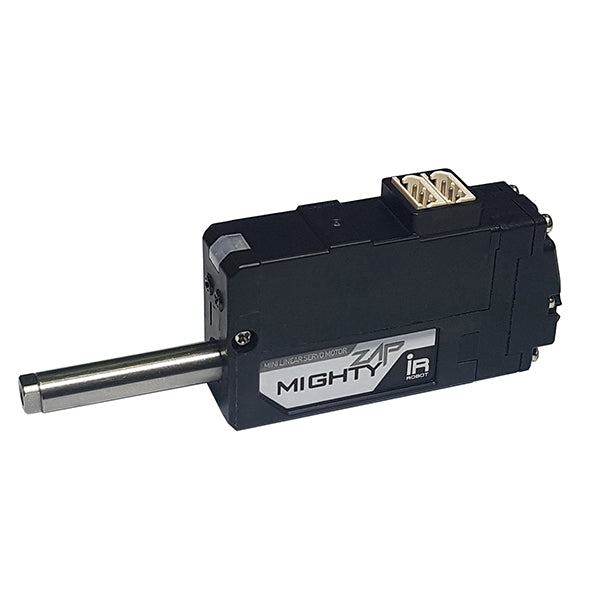

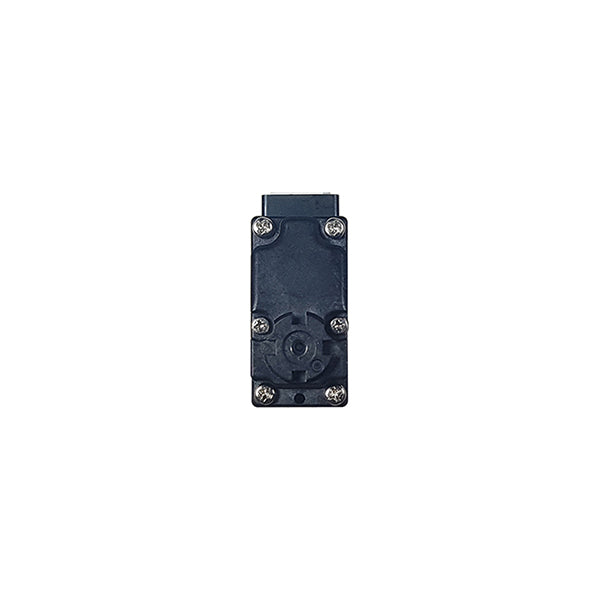

[ 12Lf Servo Series ] - 27mm(1.06in) stroke
[ 12Lf Servo Series ] - 27mm(1.06in) stroke
[ 12Lf Servo Series ] - 27mm(1.06in) stroke
[ 12Lf Servo Series ] - 27mm(1.06in) stroke
[ 12Lf Servo Series ] - 27mm(1.06in) stroke
[ 12Lf Servo Series ] - 27mm(1.06in) stroke
[ 12Lf Servo Series ] - 27mm(1.06in) stroke

[ 12Lf Servo Series ] - 27mm(1.06in) stroke

Regular price $149.00 $0.00

12Lf Servo Series Features

  • The 2nd generation mightyZAP series supporting dynamic speed & current control as well as
    position control along with position & current feedback
  • Built-in drive circuit, position sensor, 12mm diameter coreless DC motor and gear box
  • 27/40/53/90mm stroke option
  • Rated Load of 12N ~ 100N according to gear ratio for each stroke
    * Speed ​​is inversely proportional to Rated Load, so the stronger the Rated Load, the slower the speed.
  • Support RS-485 or TTL / PWM communication
    * TTL / PWM communication version operates by automatically recognizing the input TTL / PWM signal

    * When using PWM communication, only the position command is available without position feedback (For feedback feature, use TTL or RS-485 communication)

  • Both MODBUS RTU and IR open protocols available
    (Default : IR Open protocol)

Datasheet

 *If you click the button above, the new window will open and move to the digital archive page of our headquarter's website.
Please make sure to return to the current website to complete the product purchase after referring to the data.

Important Technical Note

12Lf Servo Series Specifications

Rated Load
Stroke
Communication
Rated Load /
Max Speed(No Load)
Stall Force at Current
(1.6A / 800mA / 200mA)
Mechanical Self-Lock
(Z Axis Use)
Lead Screw / Gear Ratio / Gear Type
RS-485
TTL/PWM
10N
40mm
12Lf-10F-40
12Lf-10PT-40
10N / 110mm/s
60N / 40N / 19N
No
(Pay attention to application)
Lead Angle20° / 10:1
/ Engineering
Plastic Gears
53mm
12Lf-10F-53
12Lf-10PT-53
90mm
12Lf-10F-90
12Lf-10PT-90
12N
27mm
12Lf-12F-27
12Lf-12PT-27
12N / 110mm/s
100N / 60N / 16N
17N
40mm
12Lf-17F-40
12Lf-17PT-40
17N / 80mm/s
100N / 60N / 23N
Lead Angle15° / 10:1
/ Engineering
Plastic Gears
53mm
12Lf-17F-53
12Lf-17PT-53
90mm
12Lf-17F-90
12Lf-17PT-90
20N
27mm
12Lf-20F-27
12Lf-20PT-27
20N / 80mm/s
120N / 72N / 24N
27N
40mm
12Lf-27F-40
12Lf-27PT-40
27N / 28mm/s
160N / 96N / 33N
Yes
(Applicable)
Lead Angle 5° / 10:1
/ Engineering
Plastic Gears
53mm
12Lf-27F-53
12Lf-27PT-53
90mm
12Lf-27F-90
12Lf-27PT-90
35N
27mm
12Lf-35F-27
12Lf-35PT-27
35N / 28mm/s
210N / 126N / 59N
42N
40mm
12Lf-42F-40
12Lf-42PT-40
42N / 15mm/s
240N / 144N / 56N
Lead Angle 5° / 20:1
/ Metal Gear
53mm
12Lf-42F-53
12Lf-42PT-53
55N
27mm
12Lf-55F-27
12Lf-55PT-27
55N / 15mm/s
300N / 180N / 80N
78N
40mm
12Lf-78F-40
12Lf-78PT-40
78N / 7.7mm/s
420N / 252N / 93N
Lead Angle 5° / 50:1
/ Metal Gears
53mm
12Lf-78F-53
12Lf-78PT-53
100N
27mm
12Lf-100F-27
12Lf-100PT-27
100N / 7.7mm/s
600N / 360N / 152N


12Lf Servo Series Common Specifications

Repeatability Stroke Unidirectional
27mm / 40mm 30μm(0.03mm)
53mm 40μm(0.04mm)
90mm 50μm(0.05mm)
Mechanical Backlash 0.03mm(30μm)
Rod Type MetalAlloy Rod
Motor Type Coreless DC Motor (12mm diameter)
Rated Voltage 12V
Motor Watt 3.5W
Recommended Duty Cycle At Rated Load At Max Applicable Load
Max 50% Max 20%
Current Accuracy ±15%at Over 50mA
Position Sensor 10KΩlinear Potentiometer
Input Voltage Range 7 ~13V
Current Consumption Idle Rated Stall
Default MAX
20mA 380mA 800mA 1.6A
Audible Noise Approx. 50db at 1m
LED Indication Two Errors Indications (Input voltage, Overload)
Pulse Signal / Pulse Range PWM (PT version, R/C Hobby Signal)
900μs(Retracted)-1500μs(Center)-2100μs (Extended)
Data Communication / Protocol RS-485 or TTL(PT version) / IR Robot open protocol & MODBUS RTU protocol
Ingress Protection IP-54(Dust & Water Tight)
Size / Weight
(Excluding rod-end & hinge)
27mm 57.5(L)x29.9(W)x15(H)mm/ 49~52g
40mm 86.9(L)x36(W)x18(H)mm/ 96~99g
53mm 111.5(L)x36(W)x18(H)mm/ 124~127g
90mm 151.5(L)x36(W)x18(H)mm/ Approx. 177g
Operating Temperature -10℃~ 60℃
Wire Harness TTL(PTversion) : Molex to Molex Type (Molex 50-37-5033, 3pins) / 200mmlength, 0.08×60(22AWG)
or RS485(F version) : Molex to Molex Type(Molex 0510650400, 4pins) / 200mm length, 0.08×60(22AWG)

Dimension

 *If you click the button above, the new window will open and move to the digital archive page of our headquarter's website.
Please make sure to return to the current website to complete the product purchase after referring to the data.




Standard Accessories



PC Software MightyZAP Manager

  • Setting for various operation parameters & memory parameters
    - Baud rate, ID, Delay, Stroke limit, Compliance margin setting
    - Goal Speed, Goal Position, Goal Current, LED Alarm, Shutdown setting
    - Acceleration / Deceleration Setting
  • Simple Motion Test
  • System reset and Firmware update
  • Motor Operating Rate, Voltage, Temperature, Position, Current real time monitoring
  • Need optional PC USB Interface “IR-USB02” (Sold separately)
  • Windows compatible mightyZAP manager PC software enables users to set various parameters & test motions. (Able to downloaded from our website for free)
  • (PC Software will be updated from time to time, so it is recommended for the user to download and update PC software properl
